Raised voltage of 3200V and increased clearance and creepage distance meet requirements of today’s high voltage applications
Key points:
- Increased creepage and clearance distance of 38mm
- Raised voltage of 3200V for uninsulated cables
- Ideally suited for power measurement and power analysis for EV chargers, power inverters and battery energy storage systems
- Removable isolation insert and large aperture of 41,2mm for wide cable terminals

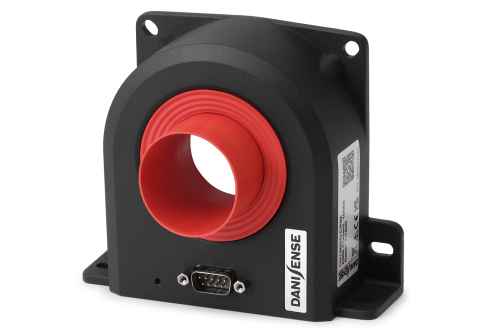

In response to a key customer requirement, Danisense, the leader in high-accuracy current sense transducers for demanding applications, has expanded its DN1000ID current transducer product family with the introduction of the new DN1000ID-CP02 model.
The DN1000ID-CP02 current transducer features a significantly increased creepage and clearance distance of 38mm, compared with 11mm for the standard DN1000ID version. In addition, the permissible voltage for uninsulated cables has been raised from 1000V to 3200V. As system voltages continue to rise across a wide range of applications, these enhancements make the new device particularly well suited for power measurement and power analysis in EV chargers, power inverters, and battery energy storage systems.
Additional target applications include EV test benches, particle accelerators, MRI systems and medical scanners, battery testing and evaluation equipment, current calibration systems, and other precision current-sensing applications.
The DN1000ID-CP02 device incorporates a removable isolation insert and a large 40mm aperture to accommodate wide cable terminals. The transducer is capable of measuring currents up to 1500A, with continuous measurement of 1000A achieved with a linearity error of less than 1ppm. An over-range capability of 1200A RMS for up to 30 minutes is also supported.
BasBased on Danisense’s ultra-stable closed-loop fluxgate technology, the DN1000ID-CP02 product delivers a very low offset of 5ppm and ultra-low drift. Noise performance is best-in-class, with sub-ppm RMS noise across frequencies up to 10kHz. The device provides high resolution for precise monitoring, reliable and consistent performance, and a compact, rugged design to support straightforward installation and long-term durability.
Learn more about Danisense’s new DN1000ID-CP02 here.
For a datasheet please click here
